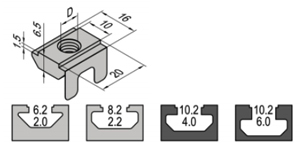

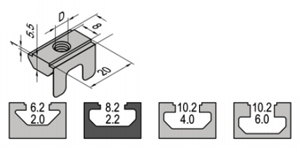

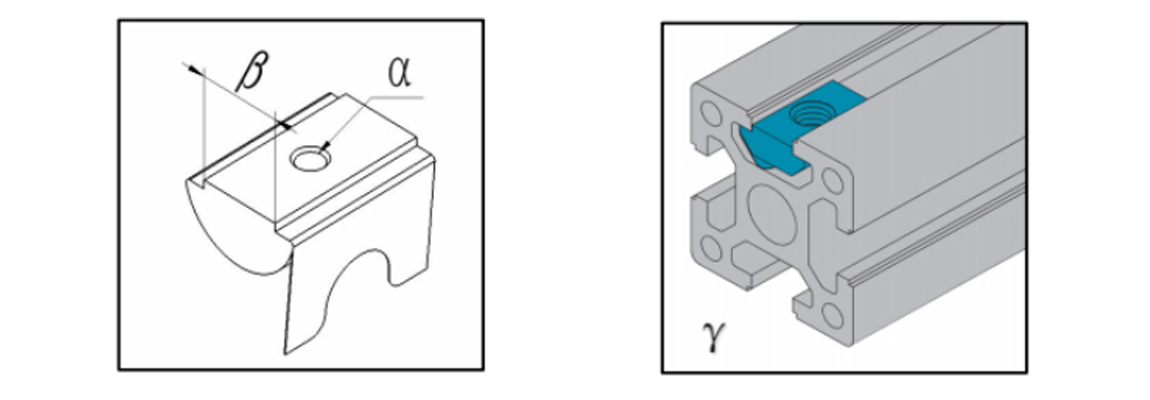

Spring leaf roll in nut

Load-bearing capacities of various T-slot fasteners

The load-bearing capacities of T-slot fasteners can vary widely based on several factors, including the type of fastener, the material used, and the design of the assembly. Here's an overview of key considerations regarding load-bearing capacities:
Types of T-Slot Fasteners:T-nuts: Commonly used in T-slot systems, these can handle varying loads depending on the design and size. Standard T-nuts are typically rated for moderate loads, while heavy-duty versions can support higher weights.Bolts and Screws: The strength of these fasteners depends on their diameter and material grade. Standard steel bolts (e.g., grade 8.8 or higher) provide significant load-bearing capacity, while stainless steel options offer corrosion resistance.End Fasteners: Used for securing components at the ends of profiles, their load capacity is influenced by the contact area and the fastener type.
Material Properties:Aluminum vs. Steel: Aluminum fasteners generally have lower load capacities than their steel counterparts due to differences in material strength. However, they are lighter and suitable for applications where weight is a concern.Coating and Treatment: Anodizing or surface treatments can enhance corrosion resistance but may slightly affect load capacity due to changes in surface hardness.
Load Direction:Axial Loads: Fasteners designed for axial loads (along the fastener's axis) typically have higher load capacities. Proper alignment and installation are crucial to maximizing this capacity.Shear Loads: T-slot fasteners are often subjected to shear forces, which can reduce their effective load-bearing capacity. Fasteners must be installed correctly to manage these forces effectively.
Assembly Design:Profile Size and Configuration: The design of the T-slot profile itself can influence the load-bearing capacity. Larger profiles with thicker walls generally offer better load distribution.Distribution of Load: Evenly distributing loads across multiple fasteners can significantly increase the overall load capacity of the assembly.
Testing and Standards:Standard Testing Protocols: Many manufacturers conduct standardized testing to determine load capacities for different fasteners. These tests often follow industry standards (e.g., ASTM, ISO) for accuracy.Manufacturer Specifications: Load capacities are usually provided by manufacturers and should be referenced when designing assemblies. It's essential to consider safety factors in any application.
Examples of Load Capacities:T-Nuts: Standard T-nuts might support loads ranging from 200 to 1,200 lbs (90 to 540 kg) depending on the size and material.Bolts: A standard M8 steel bolt may have a tensile strength of around 1,200 lbs (540 kg), while an M10 bolt could handle approximately 2,200 lbs (1,000 kg).End Fasteners: Load capacities can vary but are generally rated in the range of several hundred pounds, depending on their design and installation.
Considerations for High Loads:Reinforcement: In high-load applications, additional supports or braces may be necessary to enhance the overall strength of the assembly.Regular Inspections: Regular inspections should be conducted to ensure that fasteners are not showing signs of fatigue or failure under continuous load.
When designing structures using T-slot fasteners, it is crucial to understand the load-bearing capacities specific to the fasteners and materials used. Always refer to manufacturer guidelines and testing results for accurate load ratings, and consider safety factors in your designs to ensure reliability and stability in various applications.

The way T slot fasteners contribute to improving the reusability of structures and components

T-slot fasteners enhance the reusability of structures and components in several ways:
Modular Design:Flexible Configuration: T-slot systems allow for easy reconfiguration of structures, making it simple to adapt or repurpose components for different applications.Interchangeable Parts: Components can be swapped out or replaced without needing to dismantle the entire assembly, facilitating quick changes.
Ease of Assembly and Disassembly:Quick Installation: T-slot fasteners enable fast and straightforward assembly, allowing users to easily take apart structures for relocation or modification.No Specialized Tools Required: Many T-slot fasteners can be installed with standard tools, simplifying the process for users and reducing the time needed for assembly and disassembly.
Durability and Strength:High Load Capacity: T-slot fasteners are designed to handle significant loads, ensuring that reused components remain safe and functional over time.Robust Materials: Made from durable materials like aluminum and treated for corrosion resistance, T-slot fasteners maintain their integrity during multiple uses.
Cost Efficiency:Reduced Waste: The ability to reuse components reduces the need for new materials, minimizing waste and lowering project costs.Long Lifespan: The durability of T-slot fasteners and components means they can be used in various projects over an extended period.
Standardization:Consistent Sizing: Standardized T-slot profiles and fasteners allow for compatibility across different projects, enabling easy integration of reused parts.Widely Available Components: The widespread use of T-slot systems means that replacement parts and fasteners are readily available, facilitating repairs or modifications.
Design Adaptability:Customizable Solutions: T-slot fasteners can be combined with various components to create custom solutions, allowing for easy adaptation to changing needs.Reconfigurable Systems: Structures built with T-slot fasteners can be easily modified to accommodate new designs or requirements, promoting their reuse.
By offering modularity, ease of use, and adaptability, T-slot fasteners significantly enhance the reusability of structures and components, making them a valuable choice in various applications.
