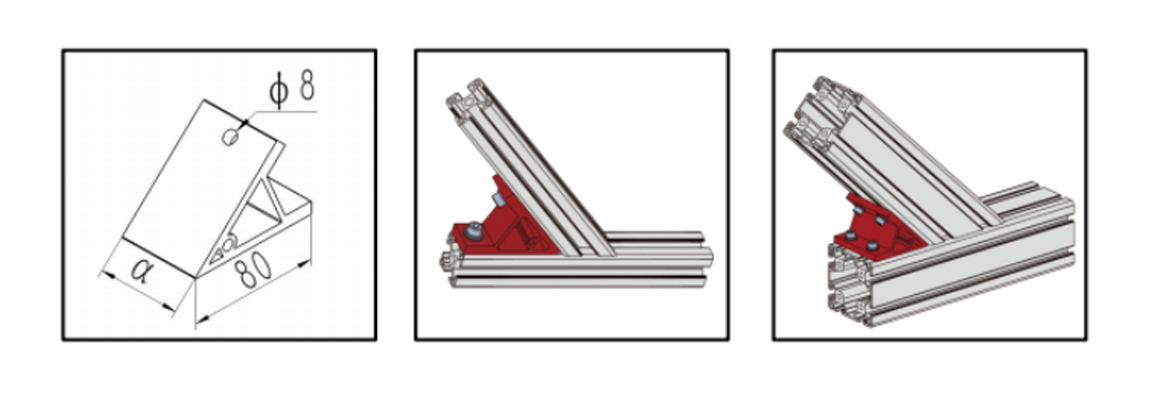

Home / Products / MK T Slot Aluminium Profile Systems / T Slot Connectors / 45° Aluminum Extrusion Bracket

About Us
Shanghai MK Aluminum Co. , Ltd.

Shanghai MK Aluminum Co., Ltd. Dongtai factory, occupying more than 210 hectares, includes 8 production buildings, 2 office buildings, and 1 apartment building, which is more than 200,000 square meters of building area in total. Since 2006 MK has specialized in aluminium extrusion design and production.

MK aluminum profiles are widely applied in modular assembly products, modular conveyors, machine frames, fences, workstations, linear motion products, stair and platform products, commercial complexes, resort hotels, apartment buildings, villa and office buildings, solar frames, solar racking products across the world. The annual output of aluminum profiles is over 60,000 tons.

We have a professional R&D team with rich technical experience and innovation ability. The company focuses on technological innovation, constantly promotes the development of the field of intelligent equipment, and cooperates with customers to customize solutions that meet their needs.

With quality as the core, we strictly control the product manufacturing process to ensure product quality and reliability. The company's products comply with relevant international and domestic standards and have passed corresponding certifications and testing.

News
T Slot Connectors Industry knowledge

Common Mistakes to Avoid When Installing T-Slot Connectors

Here are some common mistakes to avoid when installing T-slot connectors:
Incorrect Fastener Selection:Choosing the Wrong Type: Using connectors not suited for the specific T-slot profile can lead to instability. Always match the connector type with the profile specifications.Ignoring Load Capacities: Failing to consider the load-bearing requirements can result in connector failure. Refer to manufacturer guidelines for load ratings.
Poor Alignment:Misalignment During Installation: Not aligning connectors properly can lead to stress on the fasteners and potential structural failure. Ensure all components are aligned before tightening.Ignoring T-slot Orientation: Installing connectors in the wrong orientation can hinder assembly functionality. Pay attention to the design specifications.
Overtightening:Applying Excessive Torque: Over-tightening can strip threads or damage connectors, compromising their effectiveness. Follow recommended torque specifications carefully.Forgetting to Use a Torque Wrench: Not using a torque wrench can result in inconsistent tightening. Always use the appropriate tools for precise torque application.
Neglecting Surface Preparation:Failing to Clean Surfaces: Dirt, dust, or debris on the contact surfaces can affect the grip and integrity of the connection. Clean all surfaces before installation.Ignoring Coatings: If connectors have protective coatings, ensure they are intact and compatible with the materials being joined.
Inadequate Support During Assembly:Not Supporting Components: Failing to provide adequate support during assembly can lead to misalignment or damage. Use temporary supports if needed.Ignoring Structural Integrity: Not considering the overall stability of the assembly during installation can lead to issues later. Ensure all components are securely supported.
Skipping Pre-Installation Checks:Not Inspecting Components: Failing to check connectors and profiles for defects before installation can result in issues. Inspect all components for damage or wear.Neglecting Manufacturer Instructions: Ignoring the manufacturer’s installation guidelines can lead to mistakes. Always refer to the provided documentation.
Insufficient Planning:Lack of Assembly Plan: Not having a clear plan for assembly can lead to confusion and mistakes during installation. Create a detailed assembly plan before starting.Overlooking Future Adjustments: Failing to consider future modifications can result in a less adaptable assembly. Design with flexibility in mind.
Ignoring Safety Precautions:Neglecting Personal Protective Equipment (PPE): Skipping safety gear can lead to injuries during installation. Always wear appropriate PPE.Not Following Safety Protocols: Ignoring safety protocols related to working with heavy materials can pose risks. Adhere to all safety guidelines during the process.
Forgetting to Check Final Assembly:Not Performing Final Inspections: Skipping the final inspection of the completed assembly can result in overlooked issues. Always check for proper installation and alignment before use.Failing to Test Load Capacity: Not testing the assembly under expected load conditions can lead to unexpected failures. Perform load tests as necessary.
By avoiding these common mistakes, you can ensure a successful installation of T-slot connectors, leading to more reliable and stable assemblies. Proper planning, attention to detail, and adherence to guidelines are key to achieving optimal results.

Different T slot connectors designs affect overall assembly performance

The design of T-slot connectors significantly impacts overall assembly performance in several key ways:
Load Distribution:Design Variation: Different connector designs can distribute loads more effectively across the assembly. For example, connectors that provide a wider contact area can reduce stress concentration on individual components.Shear and Tension: Connectors designed for specific load types (shear vs. tension) can optimize performance by ensuring that the connection can handle expected forces without failure.
Ease of Assembly:User-Friendly Designs: Connectors that are intuitive and easy to install reduce assembly time and the likelihood of errors. Features like quick-release mechanisms or integrated alignment guides enhance efficiency.Compatibility: Connectors designed to fit various T-slot profiles simplify integration, allowing for a more straightforward assembly process.
Stability and Rigidity:Connector Geometry: The shape and configuration of connectors (e.g., right-angle, pivoting) influence the rigidity of the assembly. Well-designed connectors can enhance structural stability, reducing flex and vibrations during use.Connection Depth: Connectors that penetrate deeper into the T-slot can provide additional stability and resistance to movement, leading to a more robust assembly.
Versatility and Modularity:Modular Designs: Connectors that allow for easy reconfiguration or addition of components enable greater flexibility in design. This modularity is essential in applications that require frequent adjustments or expansions.Customization Options: Connectors that can be customized for specific applications or loads offer greater adaptability, allowing users to create tailored solutions without starting from scratch.
Material Considerations:Material Selection: Different connector materials (e.g., aluminum, steel, plastic) affect weight, strength, and durability. The right material choice can enhance performance based on environmental conditions and load requirements.Surface Treatments: Connectors with special coatings can improve corrosion resistance, impacting longevity and maintenance needs.
Alignment and Precision:Alignment Features: Connectors with built-in alignment aids help ensure that components are positioned correctly, reducing the risk of misalignment during assembly. This is crucial for maintaining structural integrity.Precision Engineering: High-quality connectors designed with precision machining can enhance the overall performance of the assembly by ensuring tight tolerances and effective load transfer.
Cost Efficiency:Design Efficiency: Streamlined connector designs that require fewer components can reduce manufacturing costs and simplify assembly, leading to overall cost savings.Long-Term Value: Connectors designed for durability and reuse can lower long-term costs by minimizing the need for replacements and repairs.
Aesthetic Considerations:Visual Design: Well-designed connectors that complement the aesthetics of the overall assembly can enhance the final product’s appearance, which is important in consumer-facing applications.Branding Opportunities: Connectors that can be customized in color or finish offer branding opportunities for businesses, potentially increasing marketability.
The design of T-slot connectors plays a crucial role in determining the performance, efficiency, and adaptability of assembled structures. By selecting the right connector design for specific applications, users can significantly enhance assembly effectiveness and longevity, ensuring reliable performance in various environments.
