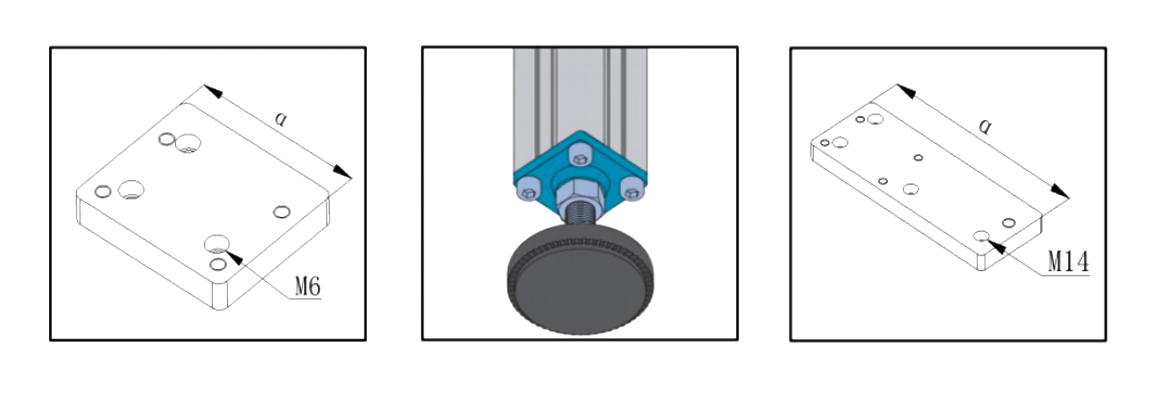

End Plate

Factors Affecting the Load-bearing Capacity of Floor-to-Frame Parts

When evaluating the load-bearing capacity of floor-to-frame parts, several key factors must be considered to ensure safety and structural integrity. Here are the main factors affecting their load-bearing capacity:
Material Properties:Type of Material: The strength and stiffness of the material (e.g., wood, steel, aluminum) significantly impact load capacity.Quality of Material: Variations in quality, such as defects or inconsistencies in the material, can reduce load-bearing capacity.
Moisture Content: For materials like wood, moisture levels can affect strength and lead to swelling, shrinking, or warping.
Cross-Sectional Area:Profile Design: The shape and size of the member's cross-section (e.g., I-beams, rectangular tubes) influence how load is distributed and resisted.Thickness: Thicker parts generally have higher load-bearing capacity due to increased strength.
Length and Span:Span Length: Longer spans typically reduce load capacity due to increased deflection and bending stresses.
Support Conditions: The type and placement of supports can affect how loads are distributed along the member.
Load Distribution:Type of Load: Static loads (permanent) and dynamic loads (temporary, such as moving objects) have different effects on load-bearing capacity.Uniform vs. Concentrated Loads: Uniformly distributed loads are generally easier to manage than concentrated loads, which can create localized stress.
Connection Details:Connection Type: The design of connections (e.g., bolted, welded, glued) can affect the overall load transfer and performance of the floor-to-frame system.Connection Strength: The strength and stiffness of connections can limit the overall load-bearing capacity if they fail under stress.
Environmental Conditions:Temperature Variations: Extreme temperatures can affect material properties, particularly for metals and polymers.Corrosion and Deterioration: Exposure to moisture, chemicals, or UV light can degrade materials over time, reducing load capacity.
Deflection Limits:Serviceability Criteria: Even if a member can support the maximum load, excessive deflection can lead to serviceability issues, affecting functionality and aesthetics.Local Buckling: In slender parts, buckling can occur before reaching the material's ultimate strength, limiting load capacity.
Design Codes and Standards:Compliance with Codes: Adhering to local building codes and standards ensures that load-bearing capacities are adequately calculated and tested.Safety Factors: Engineering practices often involve applying safety factors to account for uncertainties in material properties, loads, and environmental conditions.
Aging and Fatigue:Cumulative Damage: Repeated loading cycles can lead to material fatigue, reducing the effective load-bearing capacity over time.Structural Aging: As materials age, their properties can change, affecting long-term performance.
Inspection and Maintenance:Regular Inspections: Routine checks for damage, wear, and deterioration help maintain the load-bearing capacity of floor-to-frame parts.Maintenance Practices: Proper maintenance can prevent issues that might compromise structural integrity.
By considering these factors, engineers and designers can better assess and ensure the load-bearing capacity of floor-to-frame parts, leading to safer and more reliable structural designs.

Design principles to follow when selecting floor-to-frame parts

When selecting floor-to-frame parts, following key design principles can ensure structural integrity, safety, and functionality. Here are important principles to consider:
Load Requirements:Determine Load Types: Assess static and dynamic loads, including live loads (people, furniture) and dead loads (building materials).Factor in Safety Margins: Use appropriate safety factors based on relevant codes and standards to account for uncertainties in load estimates.
Material Selection:Choose Appropriate Materials: Select materials based on strength, durability, and environmental conditions (e.g., wood, steel, aluminum).Consider Environmental Impact: Evaluate sustainability aspects, including recyclability and sourcing of materials.
Cross-Sectional Design:Optimize Shape and Size: Use cross-sectional profiles that efficiently distribute loads while minimizing weight (e.g., I-beams, hollow sections).Ensure Adequate Thickness: Use sufficient material thickness to prevent bending and buckling under load.
Connection Design:Select Strong Connections: Ensure connections (e.g., bolts, welds) are designed to handle expected loads without failure.Facilitate Easy Assembly: Design connections that are easy to assemble and disassemble for maintenance or modifications.
Span Considerations:Limit Span Lengths: Design floor-to-frame parts with appropriate span lengths to reduce deflection and increase stability.Support Placement: Plan for strategic placement of supports to optimize load distribution.
Serviceability Criteria:Control Deflection: Design to minimize deflection under load to ensure comfort and functionality.Accommodate Movement: Allow for thermal expansion and contraction, as well as other movements (e.g., settling).
Compliance with Codes and Standards:Follow Relevant Codes: Ensure designs comply with local building codes, industry standards, and safety regulations.Document Compliance: Keep records of design calculations and material specifications to demonstrate adherence to standards.
Simplicity and Modularity:Design for Simplicity: Keep designs straightforward to reduce costs and ease construction.Modular Design: Consider using modular components that allow for flexibility and easy reconfiguration.
Accessibility and Maintenance:Ensure Accessibility: Design floor-to-frame connections and components for easy access during maintenance and inspections.Plan for Long-Term Maintenance: Select materials and designs that minimize maintenance needs over the lifespan of the structure.
Aesthetic Considerations:Integrate Aesthetic Elements: Consider the visual impact of floor-to-frame parts within the overall design of the structure.Harmonize with Architecture: Ensure that materials and designs complement the architectural style and surrounding environment.
By adhering to these design principles, you can enhance the performance, safety, and longevity of floor-to-frame parts, contributing to a successful structural design.
